Mastering the OpenTelemetry Attributes Processor

The OpenTelemetry Collector plays a central role in shaping and managing observability data across modern systems.

Among its many components, the attributes processor is one you’ll often reach out for when you need to enrich, redact, or standardize the data flowing through your pipelines.

While the official documentation provides a foundational understanding, this guide aims to go beyond the basics by offering a comprehensive and practical deep dive.

By the end of this article, you’ll be able to wield the attributesCopy processor with confidence to tailor your telemetry and drive clearer insights.

Let's get started!

What are OpenTelemetry attributes?

In OpenTelemetry, attributes are key-value pairs that describe specific characteristics of the events, operations, or entities being observed.

They add context to your telemetry data, making it searchable, filterable, and ultimately more actionable. For example, a span representing an HTTP request might include attributes like http.request.methodCopy, http.routeCopy, and http.response.status_codeCopy.

In the OpenTelemetry model, you’ll encounter attributes in several places including Resources, Instrumentation Scopes, Metric Points, Spans, Span Events, Span Links, and Log Records.

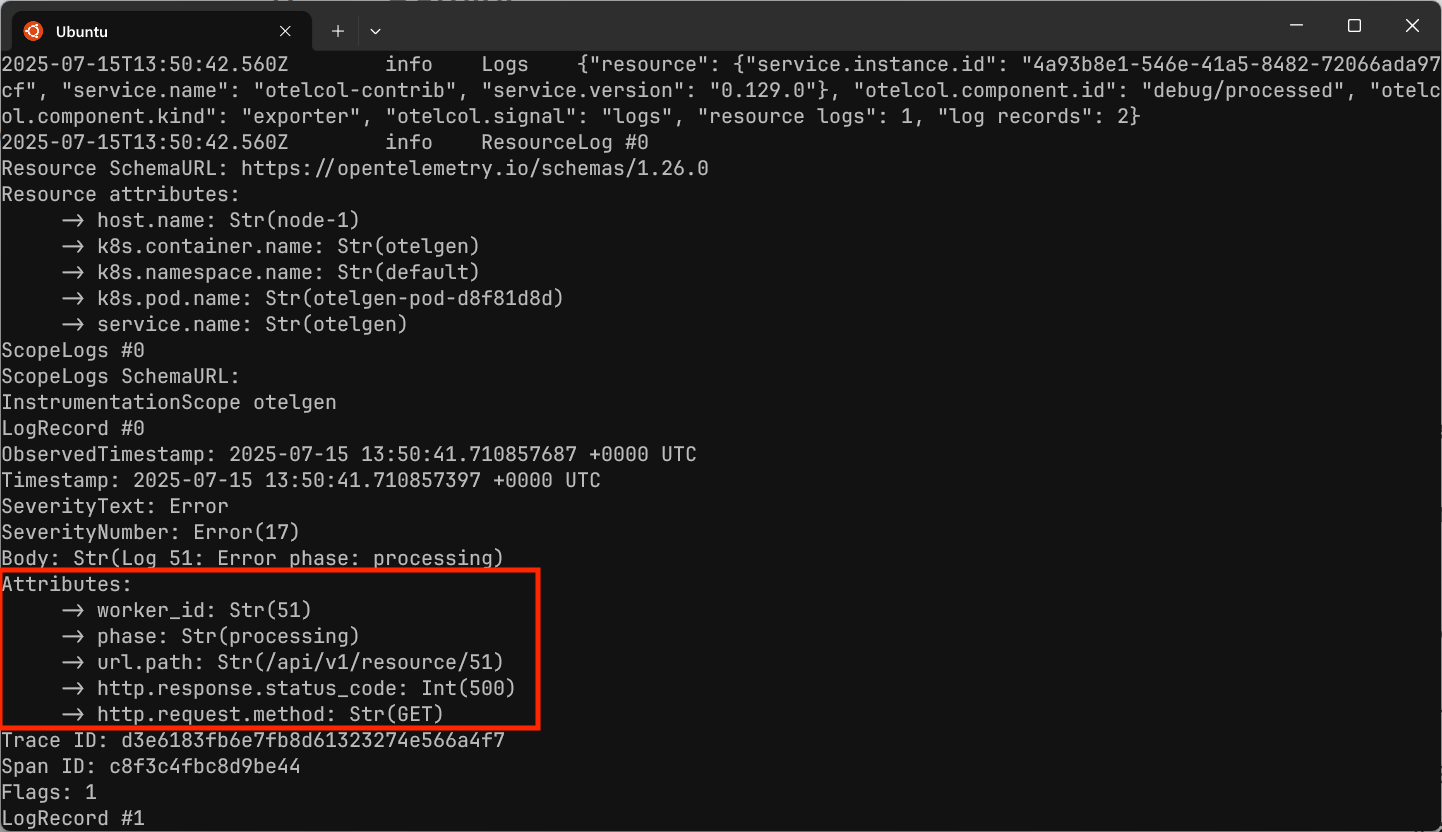

In the OpenTelemetry debug exporter, attributes appear like this:

When to use the attributes processor

The attributesCopy processor is useful anytime you need to clean up, enrich, or standardize telemetry data in-flight. Common use cases include:

• Standardizing attribute keys across your services and teams.
• Injecting metadata from various sources.
• Removing or obfuscating personally identifiable information (PII) before it leaves your systems.
• Fixing misnamed or malformed attributes from sources you don’t control.
• Driving pipeline logic based on attribute values.

Note that the attributesCopy processor operates on span, log, and metric attributes alone (shown as AttributesCopy in the debug exporter). For attribute manipulation beyond this scope, other specialized processors in the OpenTelemetry Collector are available:

• resource processor: For modifying attributes at the resource level (Resource attributesCopy).
• metricstransform processor: For metric-specific transformations, including renaming metrics, deleting data points, or performing aggregations.
• transform processor: For general data shaping or complex schema transformations with the OpenTelemetry Transform Language (OTTL).

Quick Start: adding the attributes processor

To begin using the attributesCopy processor, define it in the processorsCopy section of your Collector configuration, then reference it in the pipelinesCopy where you want it applied:

otelcol.yaml
12345678910111213141516171819202122
processors:
  attributes:
    actions:
      # Your attribute modification actions will go here
      - key: some_attribute
        value: some_value
        action: upsert

service:
  pipelines:
    traces:
      receivers: [otlp]
      processors: [attributes] # Apply to traces
      exporters: [otlp]
    metrics:
      receivers: [otlp]
      processors: [attributes] # Apply to metrics
      exporters: [otlp]
    logs:
      receivers: [otlp]
      processors: [attributes] # Apply to logs
      exporters: [otlp]

You can apply different sets of attribute modifications to various pipelines or for distinct purposes, by defining multiple instances of the attributes processor, each with a unique name:

otelcol.yaml
12345678910111213
processors:
  attributes/my_enricher:
    actions:
      - key: some_attribute
        value: some_value
        action: insert

  attributes/my_redactor:
    actions:
      - key: user.email
        action: hash
      - pattern: ".*password.*"
        action: delete

Understanding attribute processor actions

The attributesCopy processor supports a variety of actions for modifying telemetry data. These actions are executed in the order they appear in your configuration, allowing predictable control over how attributes are handled.

Adding and modifying attributes

The following actions are provided for managing attribute values:

insertCopy

This adds an attribute only if it does not already exist:

otelcol.yaml
123
- key: new_attribute
  value: "some_value"
  action: insert # Adds `new_attribute` only if it's missing

updateCopy

Modifies an attribute only if it already exists:

otelcol.yaml
123
- key: existing_attribute
  value: "updated_value"
  action: update # Updates `existing_attribute` if it exists

upsertCopy

Adds or updates an attribute (whichever is needed). This is often the most convenient and commonly used action:

otelcol.yaml
123
- key: some_attribute
  value: some_value
  action: upsert # Ensures `some_attribute` is set to `some_value`

Populating attribute values

When using the insertCopy, updateCopy, or upsert Copyactions, you have three ways to populate the attribute value:

valueCopy

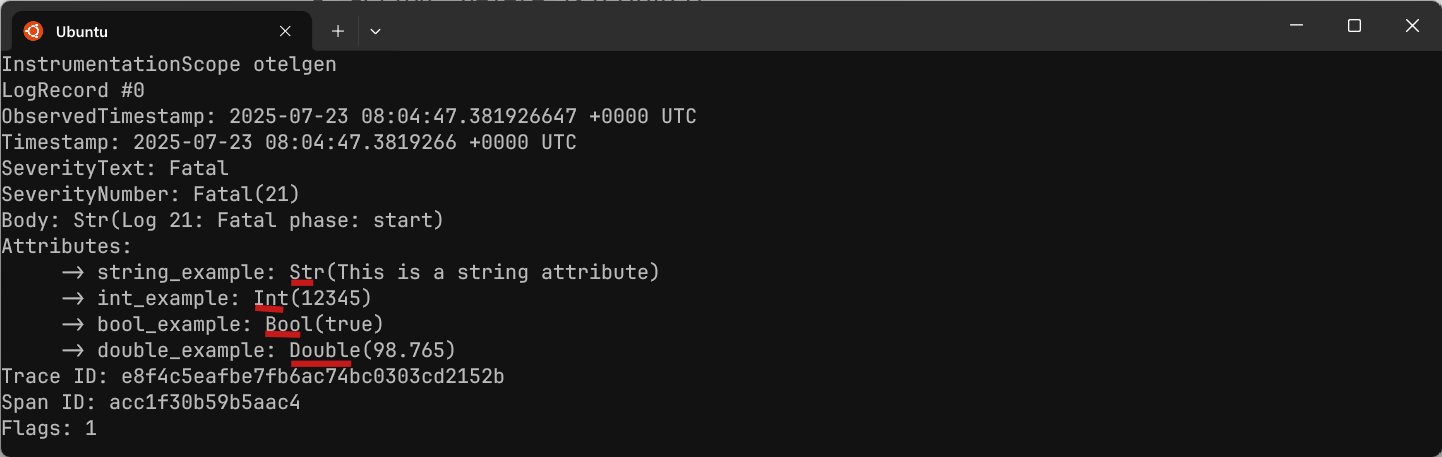

This lets you provide a literal value whose type is inferred automatically:

otelcol.yaml
1234567891011121314
attributes:
  actions:
    - key: string_example
      value: This is a string attribute
      action: upsert
    - key: int_example
      value: 12345
      action: upsert
    - key: bool_example
      value: true
      action: upsert
    - key: double_example
      value: 98.765
      action: upsert

from_attributeCopy

This copies the new attribute value from an existing attribute in the same telemetry signal:

otelcol.yaml
12345
# Copy `http.method` to `http.request.method`
actions:
  - key: http.request.method
    from_attribute: http.method
    action: upsert

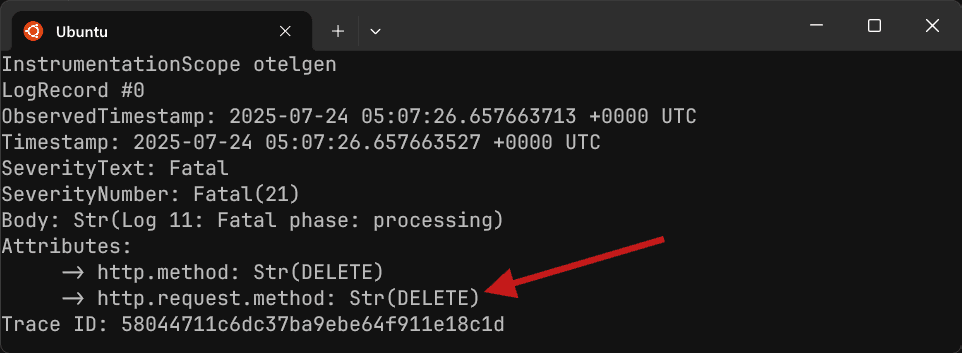

A common pattern is using from_attributeCopy to copy a value to a new attribute, and then deleting the original:

otelcol.yaml
1234567
# Copy `http.method` to `http.request.method`
actions:
  - key: http.request.method
    from_attribute: http.method
    action: upsert
  - key: http.method
    action: delete

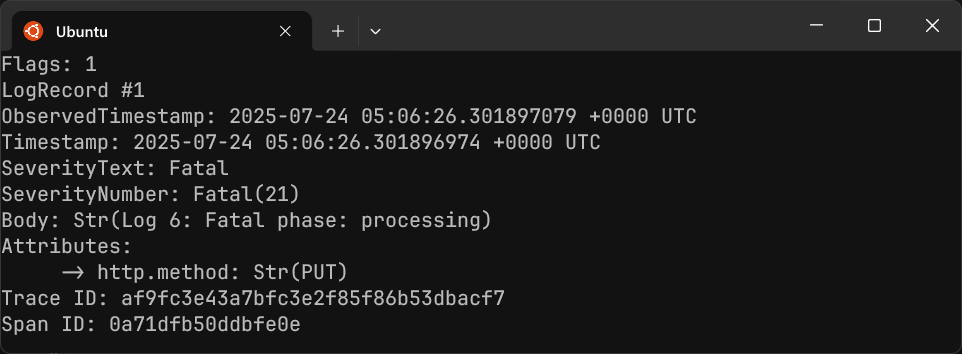

If the source attribute (http.methodCopy in this case) doesn’t exist, the action is skipped.

from_contextCopy

This extracts values from the OpenTelemetry Collector’s internal context, such as gRPC metadata, HTTP headers, client address, or authentication info. Here are the available patterns:

• metadata.<key>Copy: To extract HTTP headers or gRPC metadata, you must use the metadataCopy prefix. You’ll need to enable include_metadata: trueCopy on your OTLP receiver before you can access these attributes:

otelcol.yaml
1234567891011121314
  receivers:
    otlp:
      protocols:
        grpc:
          include_metadata: true # Essential for 'from_context: metadata.*'
        http:
          include_metadata: true # Essential for 'from_context: metadata.*'

  processors:
    attributes/headers:
      actions:

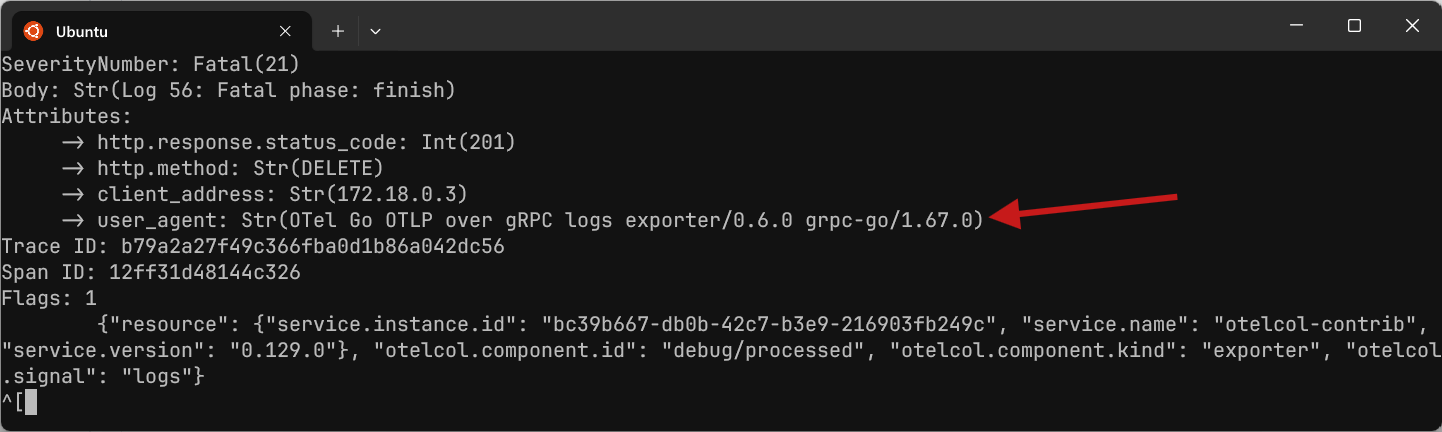

        - key: user_agent
          from_context: metadata.user-agent # Extract User-Agent header
          action: upsert

• auth.<key>Copy: Accesses authentication details provided by server authenticators. The specific keys depend on the authenticator used, so you’ll need to refer to its documentation.

otelcol.yaml
123
  - key: auth.client_id
    from_context: auth.client.id # If an authenticator exposes client.id
    action: upsert

• client.addressCopy: Captures the IP address of the client sending data to the Collector.

otelcol.yaml
123
  - key: client_address
    from_context: client.address
    action: upsert

Removing unwanted attributes

The deleteCopy action removes attributes by name or pattern. Use keyCopy for an exact match, or patternCopy for regex-based deletion:

otelcol.yaml
1234567
# Delete a specific attribute
- key: sensitive_data
  action: delete

# Delete all attributes starting with "internal."
- pattern: ^internal\..*
  action: delete

Redacting sensitive information

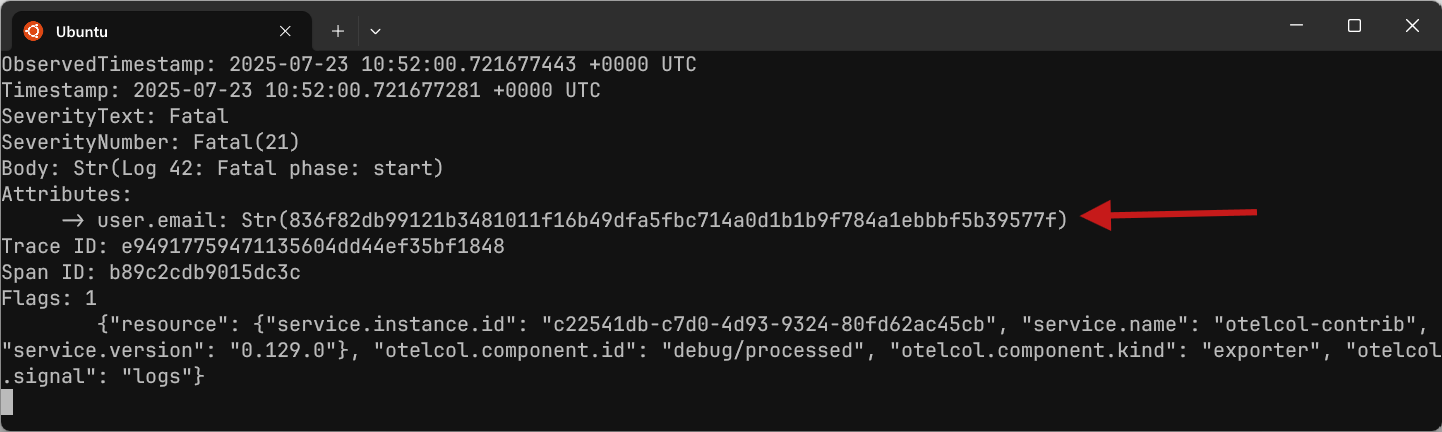

The hashCopy action replaces an attribute’s value with its SHA-256 hash. This allows you to redact sensitive information while preserving uniqueness for correlation or grouping.

As with deleteCopy, you can provide a specific keyCopy or a regular expression patternCopy:

otelcol.yaml
1234567
# Hash a specific attribute
- key: user.email
  action: hash

# Hash any attribute containing "email" in its name
- pattern: .*email.*
  action: hash

For a deeper dive, see our guide on scrubbing sensitive data from logs, traces, and metrics.

Parsing values with regular expressions

The extractCopy action lets you parse parts of an attribute’s value using a regular expression and populate the results into new attributes.

For example, consider an unstructured log like this:

1
log.record.original: "User 'jane.doe@example.com' with session ID 'ABC123XYZ' failed to authenticate from IP: 203.0.113.42 due to invalid credentials. ErrorCode: 401"

You can extract the email, session ID, client IP address, and error code into discrete attributes using the following configuration:

otelcol.yaml
12345
attributes/add_various_types:
  actions:
    - key: log.record.original
      pattern: "^User '(?P<user_email>[^']+)' with session ID '(?P<session_id>[^']+)' failed to authenticate from IP: (?P<client_ip>\\d{1,3}\\.\\d{1,3}\\.\\d{1,3}\\.\\d{1,3}) due to invalid credentials\\. ErrorCode: (?P<error_code>\\d+)"
      action: extract

The extract action requires both a keyCopy and a regex patterCopyn that must use named capture groups. In this example:

• (?P<user_email>[^']+)Copy captures the email address into a new user_emailCopy attribute.
• (?P<session_id>[^']+)Copy captures the session ID into a new session_idCopy attribute.
• (?P<client_ip>\\d{1,3}\\.\\d{1,3}\\.\\d{1,3}\\.\\d{1,3})Copy captures the IPv4 address into a new client_ipCopy attribute.
• (?P<error_code>\\d+)Copy captures the numeric error code into a new error_codeCopy attribute.

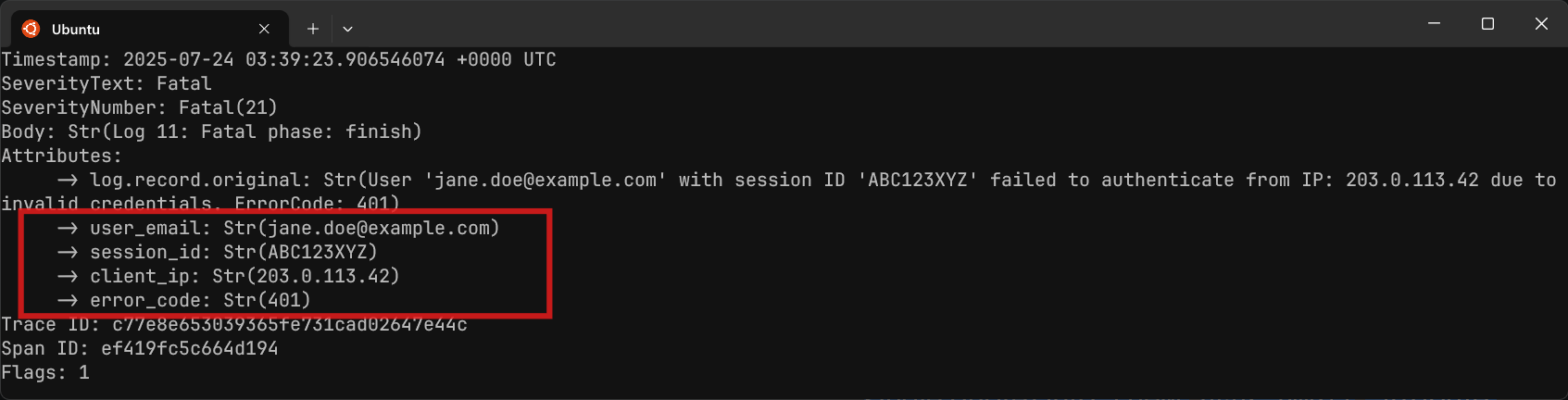

The extracted values are automatically added as attributes on the signal. If any of the target attributes already exist, they will be overwritten.

Changing attribute types

The convert action allows you to change the type of an attribute’s value to one of the supported types: intCopy, doubleCopy, or stringCopy. This is useful when normalizing data to meet semantic conventions or backend requirements.

otelcol.yaml
123
- key: response_time_ms
  action: convert
  converted_type: double # Converts a string '123.45' to a float

If the value cannot be converted (e.g., trying to convert “abc” to an intCopy), the original value remains unchanged.

Tailoring attribute modifications with filters

So far, we’ve focused on how to modify attributes. But in practice, you often don’t want these actions applied to every signal in your pipeline.

That’s where includeCopy and excludeCopy filters come in. They let you precisely control which traces, metrics, or logs your attribute actions apply to.

How filtering works

If both includeCopy and excludeCopy are specified, the includeCopy rules are evaluated first, and excludeCopy is then applied to the result of the includeCopy set.

You must also specify a match_typeCopy which determines how values are matched. It can be set to either strictCopy for exact string comparisons, or regexpCopy for more flexible pattern matching using regular expressions.

Filtering by telemetry type

Within the include and exclude fields, the available filtering options depend on the telemetry signal.

For spans, you can filter by servicesCopy, span_namesCopy, span_kindsCopy, attributesCopy, resourcesCopy, and librariesCopy:

otelcol.yaml
123456
processors:
  attributes/filter_spans:
    include:
      match_type: strict
      services: [my-backend-service] # Only process spans from this service
      span_names: [/api/v1/users] # Only process this specific span name

For log records, the valid fields are log_bodiesCopy, log_severity_textsCopy, log_severity_numberCopy, attributesCopy, resourcesCopy, and librariesCopy:

otelcol.yaml
12345678
processors:
  attributes/filter_logs:
    exclude:
      match_type: regexp
      log_bodies: [.*healthcheck.*] # Exclude logs containing "healthcheck"
      log_severity_number:
        min: 21
        match_undefined: false # Do not match logs with undefined severity

Finally, for metrics, only metric_namesCopy and resourcesCopy are supported for filtering:

otelcol.yaml
12345678
processors:
  attributes:
    include:
      match_type: regexp
      regexp:
        cacheenabled: true
        cachemaxnumentries: 1000 # Cache up to 1000 regex matches
      span_names: ["^/api/v\\d+/.*"]

Caching regular expression matches

When match_typeCopy is regexpCopy, you can enable optional regex result caching to improve performance, especially in high-throughput environments or when patterns repeat frequently.

otelcol.yaml
12345678
processors:
  attributes:
    include:
      match_type: regexp
      regexp:
        cacheenabled: true
        cachemaxnumentries: 1000 # Cache up to 1000 regex matches
      span_names: ["^/api/v\\d+/.*"]

By setting cacheenabled: trueCopy and optionally cachemaxnumentriesCopy (to limit the cache size), the processor caches results of regex matches. This avoids redundant regex evaluations and helps reduce CPU usage while increasing throughput.

Attributes processor tips and best practices

• Action order matters: Actions are executed in the order they’re defined. For example, if you’re copying an attribute and then deleting the original, make sure the copy comes first.
• Test before deploying: Use the debug exporter to validate your configuration and confirm attribute changes behave as expected before rolling out to production.
• Watch for performance impact: While the attributes processor is generally efficient, complex regex patterns or a very large number of rules can introduce significant overhead. Be sure to keep tabs on your collector’s performance metrics accordingly.
• Avoid unintended metric identity changes: If you change attributes that define a metric’s identity, you could inadvertently create new metric streams or cause data loss if the backend expects a specific identity.

Final thoughts

The OpenTelemetry attributes processor is a powerful tool for shaping high-quality telemetry. With a solid grasp of its actions, filtering logic, and best practices, you can clean, enrich, and standardize your traces, metrics, and logs before they reach your observability backend.

Once your data is clean and your attributes are well defined, the next step is sending it to an OpenTelemetry-native platform like Dash0 to help you transform them into actionable insights.
