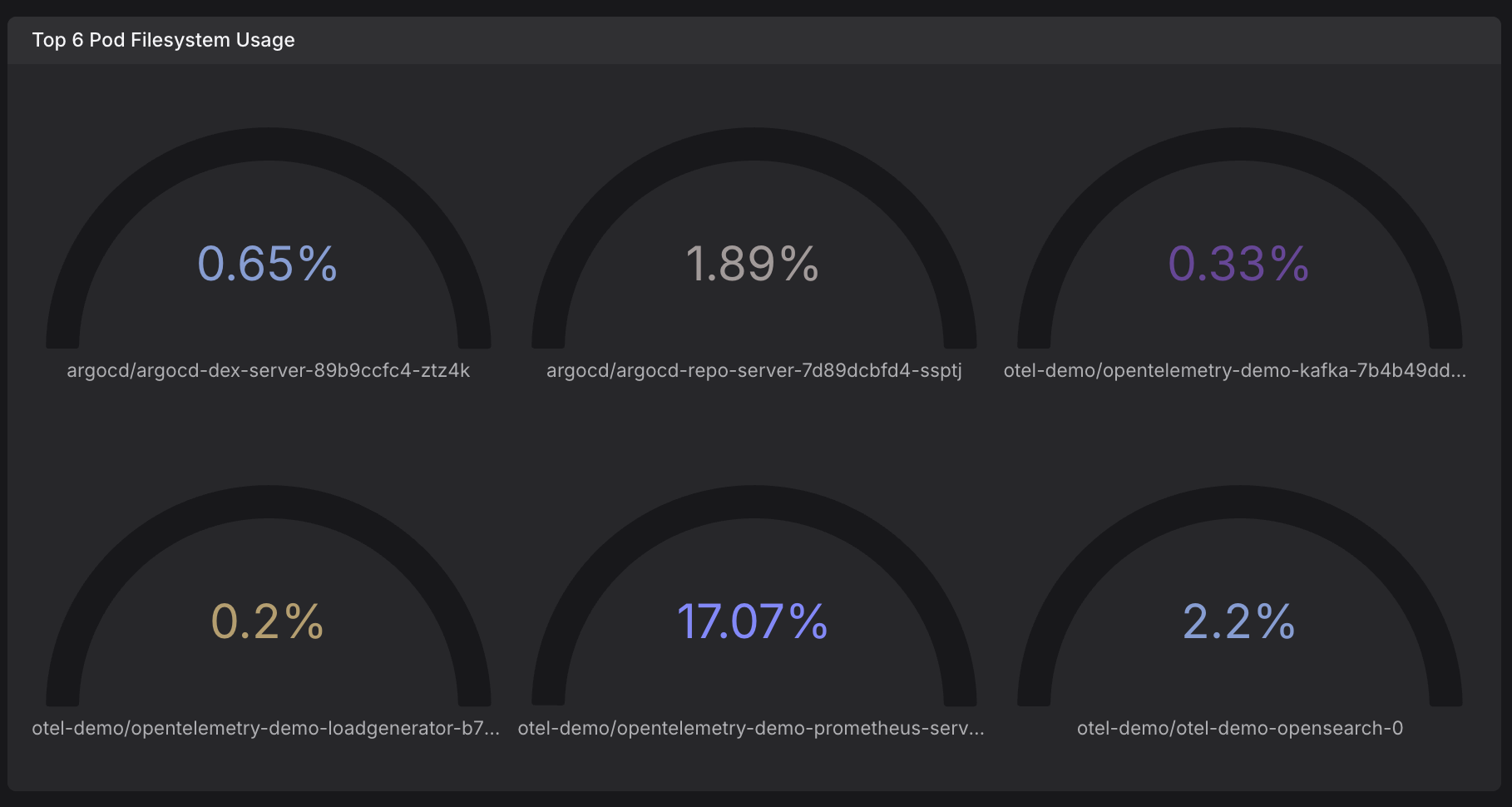

Displays a single metric value as a gauge visualization with configurable max, thresholds, and display modes.

Kind: GaugeChart

Spec Properties

Property	Type	Required	Description
`calculation`	`string` — enum: `first`, `last`, `first-number`, `last-number`, `mean`, `sum`, `min`, `max`, `instant`	Yes	Aggregation function applied to reduce a time series to a single value. 'last' returns the most recent value, 'mean' computes the average, 'sum' totals all values, 'min'/'max' return extremes, 'first-number'/'last-number' skip non-numeric values, and 'instant' returns the value at the end of the time range.
`format`	`timeFormatOptions` \| `percentFormatOptions` \| `decimalFormatOptions` \| `bytesFormatOptions` \| `bytesPerSecondFormatOptions` \| `throughputFormatOptions` \| `currencyFormatOptions` \| `temperatureFormatOptions`	No	Value format configuration. Choose one of: time, percent, decimal, bytes, bytes/s, throughput, currency, or temperature.
`maxDesiredDataPoints`	`number` \| `null`	No	Maximum number of data points to display in the widget (0–1000). Lower values improve performance, higher values increase resolution. Null means use the default.
`thresholds`	`object` — Configuration for color-coding values based on threshold boundaries.	No	Configuration for color-coding values based on threshold boundaries.
`visual`	`object` with keys: `palette`	No
`max`	`number` \| `null`	No
`dash0Extensions`	`object` with keys: `displayMode`, `hideSeriesName`, `maxTimeSeries`	No
`querySettings`	`array` of `object`	No
`sort`	`object` — Sorting configuration for table or list displays.	No	Sorting configuration for table or list displays.

Aggregation function applied to reduce a time series to a single value. 'last' returns the most recent value, 'mean' computes the average, 'sum' totals all values, 'min'/'max' return extremes, 'first-number'/'last-number' skip non-numeric values, and 'instant' returns the value at the end of the time range.

Type: string
Values: first, last, first-number, last-number, mean, sum, min, max, instant

`formatOptions`

Value format configuration. Choose one of: time, percent, decimal, bytes, bytes/s, throughput, currency, or temperature.

`timeFormatOptions`

Format options for displaying time duration values.

Property	Type	Required
`unit`	`string` — enum: `nanosecond`, `microsecond`, `milliseconds`, `seconds`, `minutes`, `hours`, `days`, `weeks`, `months`, `years`	Yes
`decimalPlaces`	`number`	No

`percentFormatOptions`

Format options for displaying percentage values.

Property	Type	Required
`unit`	`string` — enum: `percent`, `percent-decimal`, `%`	Yes
`decimalPlaces`	`number`	No

`decimalFormatOptions`

Format options for displaying plain decimal numbers.

Property	Type	Required
`unit`	`string` — enum: `decimal`	Yes
`decimalPlaces`	`number`	No
`shortValues`	`boolean`	No

`bytesFormatOptions`

Format options for displaying byte values.

Property	Type	Required
`unit`	`string` — enum: `bytes`	Yes
`decimalPlaces`	`number`	No
`shortValues`	`boolean`	No
`base`	`string` — enum: `decimal`, `binary`	No

`bytesPerSecondFormatOptions`

Format options for displaying byte rate values (bytes per second).

Property	Type	Required
`decimalPlaces`	`number`	No
`shortValues`	`boolean`	No
`base`	`string` — enum: `decimal`, `binary`	No
`unit`	`string` — enum: `bytes/s`, `bytes/sec`	Yes

`throughputFormatOptions`

Format options for displaying throughput/rate values.

Property	Type	Required
`unit`	`string` — enum: `counts/sec`, `events/sec`, `messages/sec`, `ops/sec`, `packets/sec`, `reads/sec`, `records/sec`, `errors/sec`, `requests/sec`, `rows/sec`, `writes/sec`, `/m`, `/s`	Yes
`decimalPlaces`	`number`	No
`shortValues`	`boolean`	No

`currencyFormatOptions`

Format options for displaying monetary/currency values.

Property	Type	Required
`unit`	`string` — enum: `currency-usd`, `currency-eur`, `currency-cny`, `currency-jpy`	Yes
`decimalPlaces`	`number`	No
`shortValues`	`boolean`	No

`temperatureFormatOptions`

Format options for displaying temperature values.

Property	Type	Required
`unit`	`string` — enum: `celsius`, `fahrenheit`	Yes
`decimalPlaces`	`number`	No
`shortValues`	`boolean`	No

`maxDesiredDataPoints`

Maximum number of data points to display in the widget (0–1000). Lower values improve performance, higher values increase resolution. Null means use the default.

One of: number | null

`thresholdOptions`

Configuration for color-coding values based on threshold boundaries.

Property	Type	Required
`mode`	`string` — enum: `percent`, `absolute`	No
`defaultColor`	`string`	No
`max`	`number`	No
`steps`	`array` of `stepOptions`	No

`stepOptions`

A single threshold step defining a boundary value, color, and optional label.

Property	Type	Required
`value`	`number`	Yes
`color`	`string`	No
`name`	`string`	No

`paletteModeOptions`

Color palette mode for the chart. 'auto' selects colors automatically, 'categorical' uses a fixed color set for distinguishing series, 'schemeDark2' uses the Dark2 color scheme, and 'error' uses red-toned colors for error-related visualizations.

Type: string
Values: auto, categorical, schemeDark2, error

`sortConfiguration`

Sorting configuration for table or list displays.

Property	Type	Required
`sortField`	`string` \| `null`	No
`sortDirection`	`string` — enum: `asc`, `desc`	No

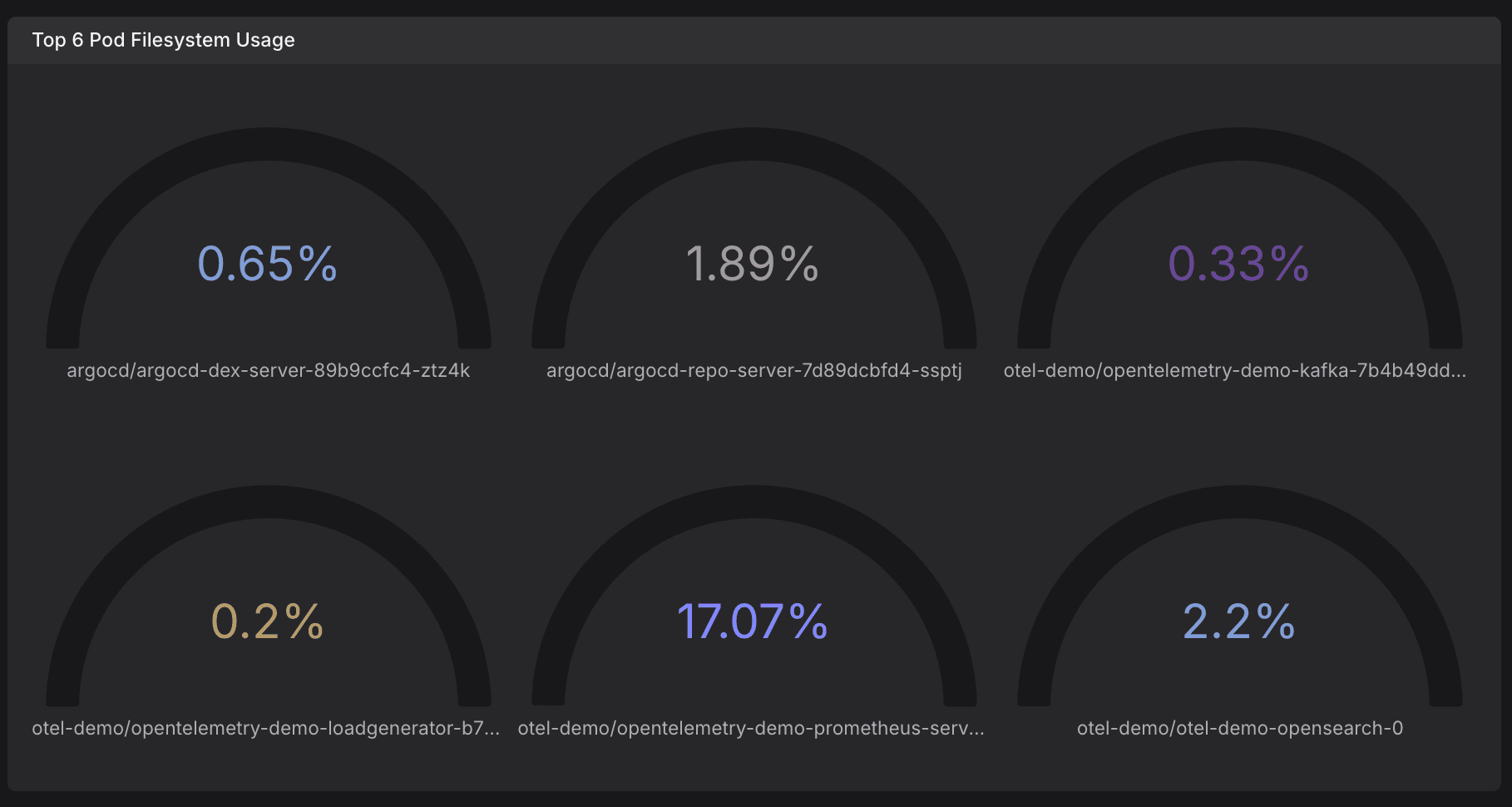

GaugeChart Definition
