What Is a Kubernetes Load Balancer (and How to Set One Up)?

When people say "Kubernetes load balancer," they usually mean one of two things: the built-in LoadBalancerCopy Service type that gives a set of pods a single external IP, or the general idea of spreading traffic across pod replicas so no single one gets overwhelmed. The two are related, but conflating them is where most of the confusion starts.

Kubernetes already load-balances across healthy pods for any Service through kube-proxy. The LoadBalancerCopy Service type is what you reach for when you also need to expose that Service to the outside world through a real load balancer with a stable IP.

Create a LoadBalancer Service

Here's a minimal complete example. It assumes you already have a Deployment whose pods carry the label app: webappCopy and listen on port 8080.

123456789101112
apiVersion: v1
kind: Service
metadata:
  name: webapp
spec:
  type: LoadBalancer
  selector:
    app: webapp
  ports:
    - protocol: TCP
      port: 80        # port the load balancer listens on
      targetPort: 8080 # port your container listens on

Apply it and watch the external IP get assigned:

12
kubectl apply -f webapp-service.yaml
kubectl get svc webapp -w

On a cloud cluster you'll see the EXTERNAL-IPCopy flip from <pending>Copy to a real address within a minute or two:

123
NAME     TYPE           CLUSTER-IP      EXTERNAL-IP      PORT(S)        AGE
webapp   LoadBalancer   10.96.193.165   <pending>        80:31044/TCP   10s
webapp   LoadBalancer   10.96.193.165   203.0.113.50     80:31044/TCP   48s

Once the IP is live, traffic to 203.0.113.50:80Copy is forwarded to a healthy pod on port 8080. The provisioning is asynchronous: Kubernetes creates the Service object immediately, then the cloud controller manager creates the actual load balancer and writes the result back into the Service's .status.loadBalancerCopy field.

How it relates to ClusterIP and NodePort

A LoadBalancerCopy Service isn't a separate mechanism. It layers on top of the two simpler Service types.

• ClusterIP is the default. Stable virtual IP, only reachable inside the cluster. kube-proxy load-balances requests to that IP across matching pods. Every Service gets one, including LoadBalancerCopy Services.
• NodePort opens a high port (default range 30000–32767) on every node and forwards it to the ClusterIP. You can see this in the output above: the 80:31044/TCPCopy means port 80 on the load balancer maps to node port 31044.
• LoadBalancer allocates a ClusterIP and a NodePort, then asks the cloud provider to provision an external load balancer that forwards incoming traffic to that NodePort across all nodes.

So a single LoadBalancerCopy Service quietly sets up three layers. The external load balancer hands traffic to a node, the node's NodePort hands it to kube-proxy, and kube-proxy picks a pod.

When to use Ingress instead

The LoadBalancerCopy type maps one Service to one cloud load balancer. Each one is a separate billable resource with its own IP. For a handful of services that's fine. For a dozen, it starts to hurt.

If you're routing HTTP or HTTPS traffic to multiple services, an Ingress is usually better. Run one Ingress controller (commonly NGINX) behind a single LoadBalancerCopy Service, and let the controller route to backend services by hostname and path. One load balancer, many services. (If you're starting fresh in 2026, it's also worth looking at the Kubernetes Gateway API, which is the designated successor to Ingress and offers more expressive routing.)

Use a LoadBalancerCopy Service for a single TCP/UDP endpoint. Use Ingress when you're fronting several HTTP services with host- and path-based routing.

Common pitfalls

EXTERNAL-IP stuck on <pending>Copy forever

This is the most common surprise, and it's almost always a bare-metal or local cluster. Kubernetes doesn't ship a load balancer implementation of its own — the LoadBalancerCopy type is glue code that calls out to a cloud provider's API (AWS ELB, Google Cloud Load Balancing, Azure Load Balancer). With no cloud controller manager, nothing ever fulfills the request, so the IP sits in <pending>Copy indefinitely. No error fires because it isn't an error — just an unfulfilled ask that Kubernetes waits on forever.

On bare metal, install something that implements the LoadBalancer contract. MetalLB is the most common choice: it allocates IPs from a pool you define and announces them over ARP (Layer 2) or BGP. Two things trip people up after installing it. You have to create an IPAddressPoolCopy, and in Layer 2 mode the pool has to be in the same subnet as your nodes. Routable-but-foreign IP ranges leave the Service pending or the IP unreachable even after assignment.

The client source IP disappears

By default, a LoadBalancerCopy Service uses externalTrafficPolicy: ClusterCopy. Traffic can land on any node and then get rerouted to a pod on a different node, which requires the receiving node to SNAT the packet, replacing the client's IP with its own. Your application sees a node IP. That breaks IP-based access controls, geolocation, and accurate request logging, and the failure is silent.

To preserve the real client IP, set externalTrafficPolicy: LocalCopy:

12345678
spec:
  type: LoadBalancer
  externalTrafficPolicy: Local
  selector:
    app: webapp
  ports:
    - port: 80
      targetPort: 8080

With LocalCopy, traffic only lands on nodes that actually run a pod for the Service, so no cross-node hop and no SNAT. The cost is uneven distribution: nodes without a backing pod get nothing. Kubernetes allocates a dedicated health-check port so the external load balancer knows which nodes are eligible. Use LocalCopy when you need the real source IP; otherwise leave ClusterCopy and recover the client IP at the ingress or proxy layer.

One load balancer per Service adds up

Every LoadBalancerCopy Service provisions a separate cloud load balancer and gets billed as one. Teams that expose each microservice this way are routinely surprised by the bill. Consolidate HTTP services behind a single Ingress and reserve LoadBalancerCopy Services for the TCP or UDP endpoints that actually require one.

Final thoughts

Once the Service is exposed, "is it reachable?" stops being the hard problem. The hard problems are things like one pod absorbing all the traffic while the rest sit idle, or latency climbing ten minutes after a deploy with no obvious cause. Neither is visible from the edge.

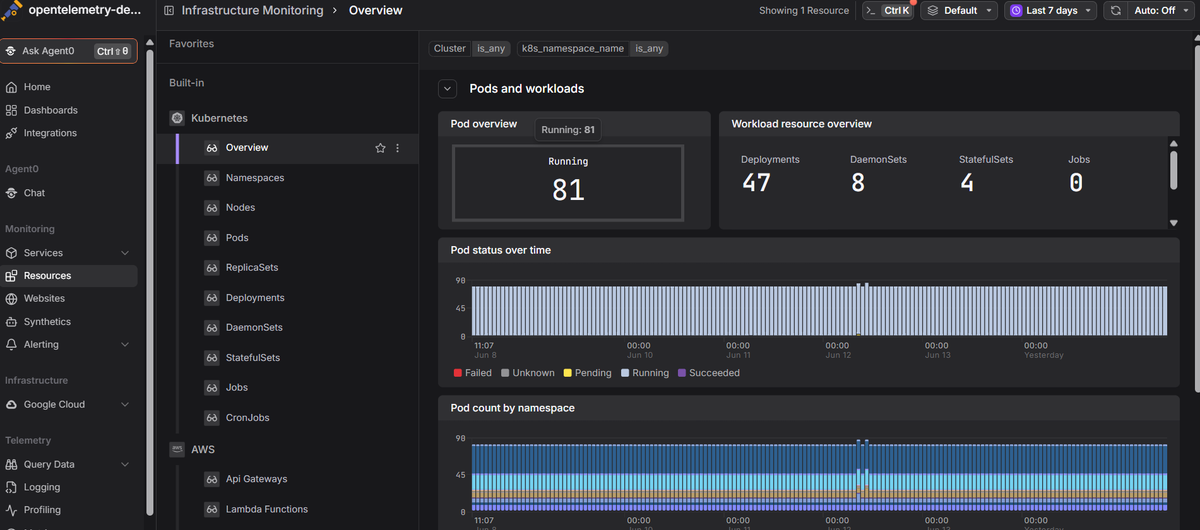

Dash0's Kubernetes monitoring is OpenTelemetry-native and ties pod-level metrics to logs and distributed traces, so you can follow a request from the load balancer down to the specific pod that handled it, without switching tools. Start a free trial to see your cluster in one view. No credit card required.
