Observing Spring AI Applications with OpenTelemetry and Dash0

What does observability mean in the context of agentic applications? When you add a large language model to your application, you're introducing a component that behaves non-deterministically: its outputs vary, it makes decisions about which tools to invoke, and it can consume wildly different amounts of tokens depending on the conversational context. Without the right observability in place, debugging these applications feels like working in the dark.

I built the Spring Merch Store as a concrete example to explore this: a Spring Boot 4 application powered by Spring AI that lets users chat their way through a Spring merchandise catalog. Users can plug in their own LLM model, send conversational prompts, and watch as the agent queries inventory, creates orders, and checks out, all through natural language.

The Spring Merch Store

The application lets you chat with an agent that queries the store inventory (socks, t-shirts, and stickers) and creates and places orders.

The store allows a multi-step interaction between the LLM acting as an agent, the local tools defined inside the application, and you. These interactions can span multiple requests containing different payloads, and that multi-step, non-deterministic flow is exactly what we want to observe.

Prerequisites

• Java 21+
• Git
• An Anthropic API key
• A Dash0 account for exporting telemetry

Running the application

1234
git clone https://github.com/salaboy/observing-ai.git
cd observing-ai/java/spring-ai/spring-merch-store
export ANTHROPIC_API_KEY=sk-ant-...
./mvnw spring-boot:run

You should see output ending with something like:

1
Started Spring MerchStore Application in 4.2s

Open http://localhost:8080 and try the following prompts:

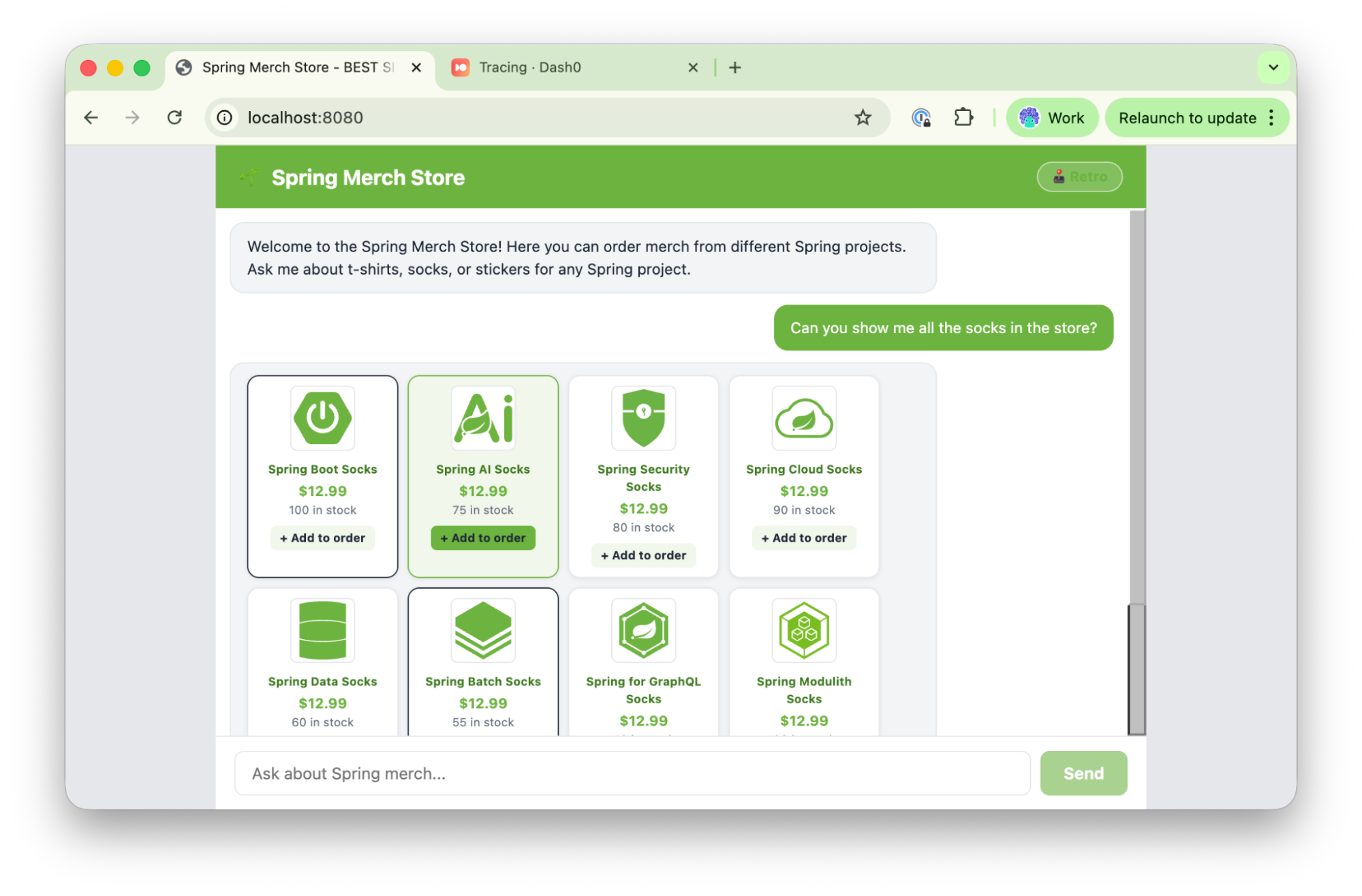

• "Show me all the available socks in the store" — product cards should stream in as the response arrives.
• Select one of the socks displayed. This creates a new message like: "Add 1 Spring Boot Socks to my order."

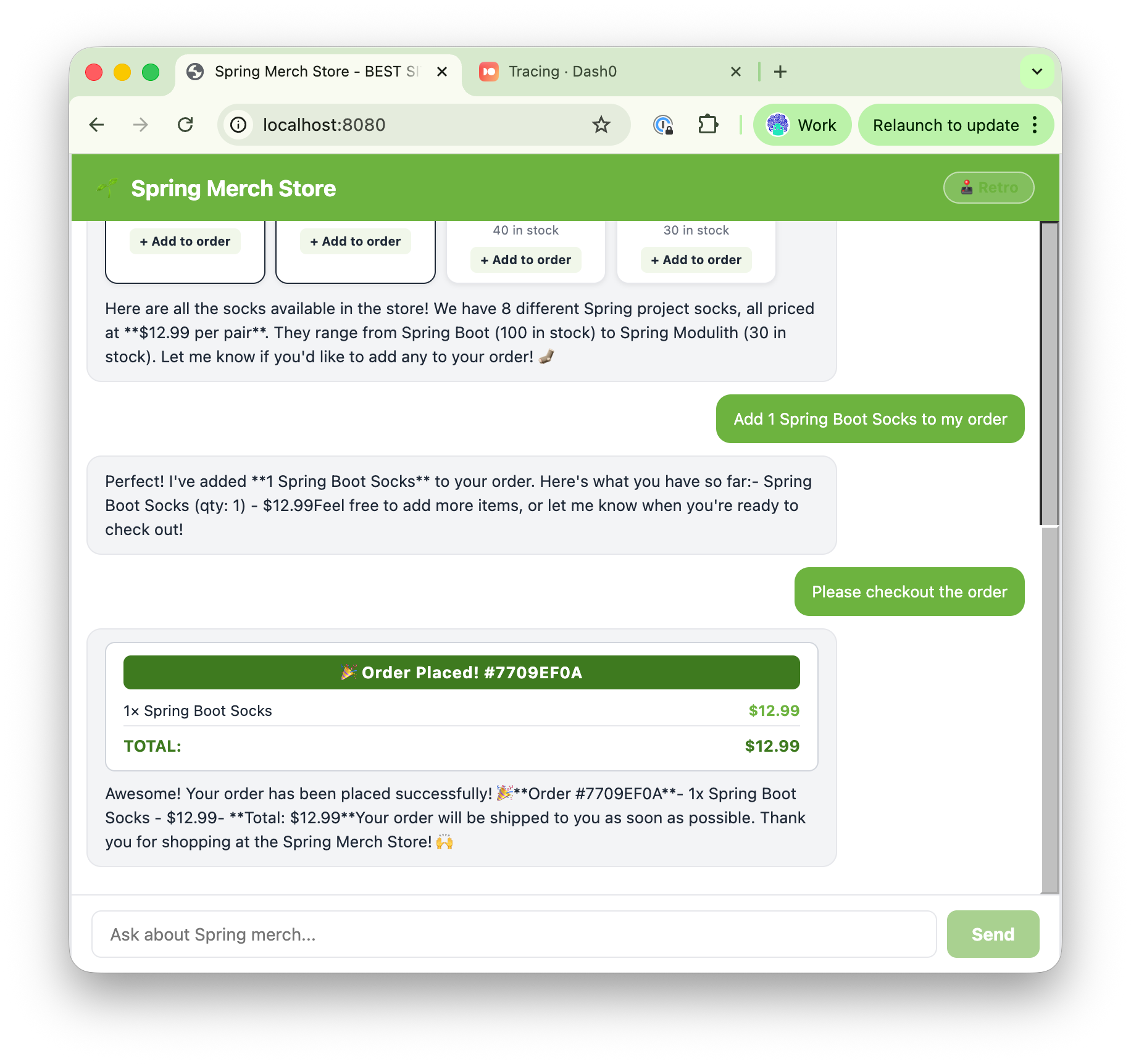

Check out the order by typing something like "Checkout the order."

OpenTelemetry in Spring Boot 4: what's new

If you've instrumented a Spring Boot 3 application with OpenTelemetry before, you'll notice something right away in the pom.xmlCopy: there's a single dependency doing almost all the work.

pom.xml
1234
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-opentelemetry</artifactId>
</dependency>

Spring Boot 4 consolidates traces, metrics, and logs into one starter. In Spring Boot 3, you'd wire together Micrometer Tracing, a Brave or OpenTelemetry bridge, and a separate OTLP exporter manually. Here, spring-boot-starter-opentelemetryCopy handles auto-configuration for all three signals, and each one is independently configurable through management.*Copy properties in application.propertiesCopy.

If you've done this wiring before, you know how tedious it was. One starter replacing three or four dependencies and a page of configuration is a real improvement. For the full list of options, see the Spring Boot OpenTelemetry reference documentation.

What you get for free

Before we configure any exporter, let's look at what the Spring Boot instrumentation actually captures. When a user sends a message and the assistant decides to call a tool, you get a span hierarchy like this:

123456
POST /api/chat/stream                           ← HTTP servlet span
  └── spring_ai chat_client                   ← ChatClient.stream()
        └── message_chat_memory               ← MessageWindowChatMemory advisor
              └── chat claude-haiku-4-5       ← First LLM call (decides tools)
                    └── tool_call displayMerchImages   ← Tool execution
              └── chat claude-haiku-4-5     ← Second LLM call (formats response)

Each chatCopy span carries gen_ai.*Copy attributes following the OpenTelemetry GenAI semantic conventions:

• gen_ai.request.model / gen_ai.response.modelCopy
• gen_ai.usage.input_tokens / gen_ai.usage.output_tokensCopy
• gen_ai.response.finish_reasonsCopy

These gen_ai.*Copy conventions are still experimental in OpenTelemetry, so attribute names may change in future releases. Worth keeping in mind if you build dashboards or alerts on top of them.

The tool_call Copyspans capture spring.ai.tool.call.argumentsCopy and spring.ai.tool.call.resultCopy, so you can see exactly what the LLM decided to pass into your tool and what came back. You get all of this without writing a single line of instrumentation code.

One thing worth watching closely: as a conversation progresses, gen_ai.usage.input_tokensCopy grows significantly. MessageWindowChatMemoryCopy keeps prior conversation turns in context, so by turn four you might see 3,700 input tokens where turn one used 1,300. That's invisible without instrumentation, and it directly maps to cost.

Connecting all three signals to Dash0

To ship telemetry to Dash0, an OTel-native observability platform, you need three things: an OTLP endpoint, an authorization token, and a dataset name to keep your data easy to filter. You can get all of these from your Dash0 account settings after signing up.

Set them as environment variables before starting the application:

123
export OTEL_EXPORTER_OTLP_ENDPOINT=https://<your otel endpoint from Dash0>
export OTEL_EXPORTER_OTLP_HEADERS_AUTHORIZATION=<your-token-here>
export DASH0_DATASET=<your-dataset-here>

The application.propertiesCopy is already wired to read from these. Here's how each signal is configured:

Traces:

123456
management.opentelemetry.tracing.export.otlp.endpoint=
                              ${OTEL_EXPORTER_OTLP_ENDPOINT}/v1/traces
management.opentelemetry.tracing.export.otlp.headers.Authorization=
                    Bearer ${OTEL_EXPORTER_OTLP_HEADERS_AUTHORIZATION}
management.opentelemetry.tracing.export.otlp.headers.Dash0-Dataset=
                                                      ${DASH0_DATASET}

Metrics:

12345
management.otlp.metrics.export.url=
                             ${OTEL_EXPORTER_OTLP_ENDPOINT}/v1/metrics
management.otlp.metrics.export.headers.Authorization=
                    Bearer ${OTEL_EXPORTER_OTLP_HEADERS_AUTHORIZATION}
management.otlp.metrics.export.headers.Dash0-Dataset=${DASH0_DATASET}

Logs:

123456
management.opentelemetry.logging.export.otlp.endpoint=
                                ${OTEL_EXPORTER_OTLP_ENDPOINT}/v1/logs
management.opentelemetry.logging.export.otlp.headers.Authorization=
                    Bearer ${OTEL_EXPORTER_OTLP_HEADERS_AUTHORIZATION}
management.opentelemetry.logging.export.otlp.headers.Dash0-Dataset=
                                                      ${DASH0_DATASET}

The log export is backed by a Logback appender defined in logback-spring.xmlCopy. InstallOpenTelemetryAppenderCopy, an InitializingBeanCopy, installs it into Logback at startup, bridging Spring's log output directly into the OTel pipeline. Every log line now carries a trace_idCopy and span_idCopy, which means you can jump from a log entry in Dash0 directly to the trace it belongs to.

Restart the application with the environment variables set, send a few chat messages, and within seconds you'll see data flowing into Dash0.

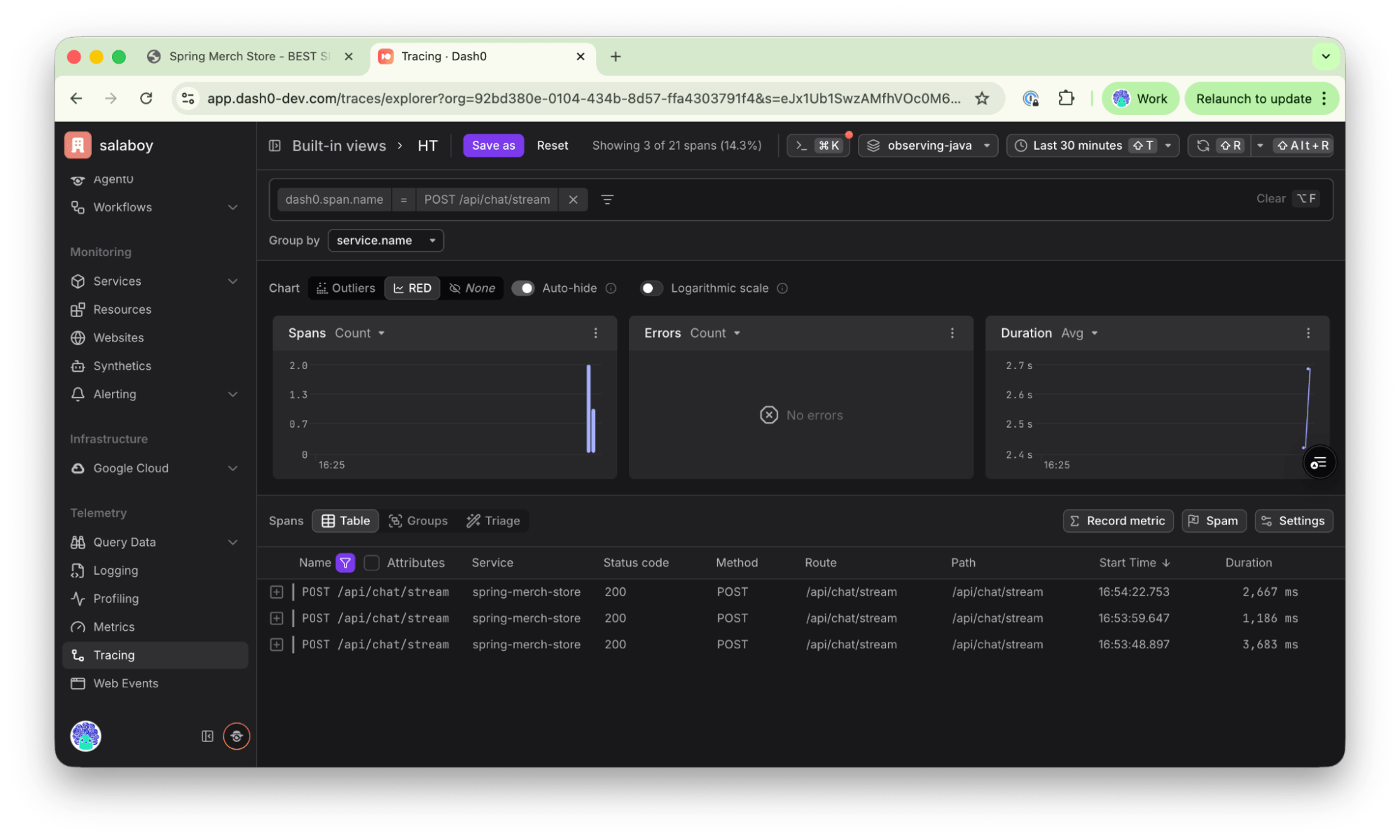

Exploring your application in Dash0

This application is simple, but it hides some interesting patterns. Let's look at the traces generated by these interactions.

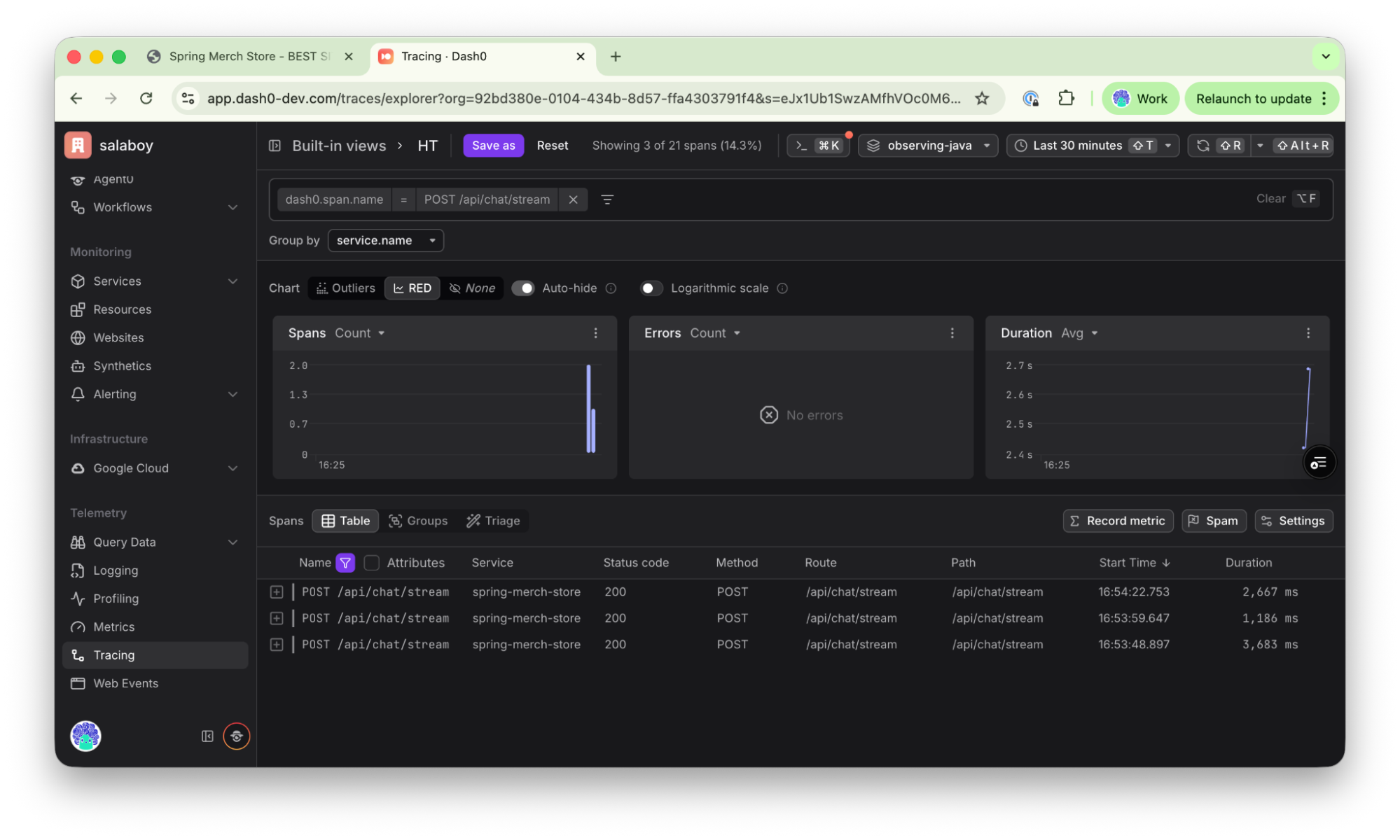

Every time you send a message via the chat, the frontend sends a request to the /api/chat/streamCopy endpoint that streams the responses coming back from the LLM.

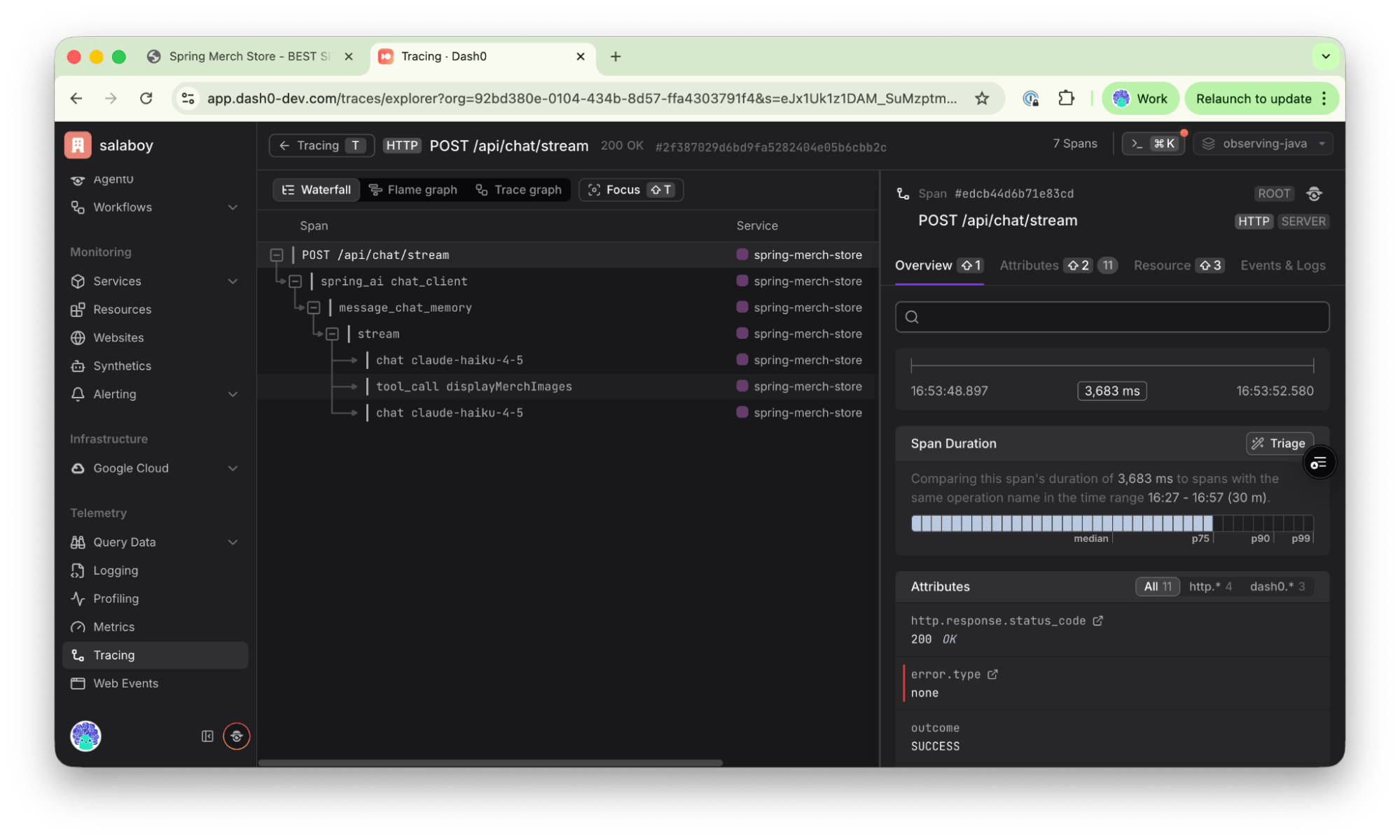

Let's dig into one of the traces. We'll start with the first interaction: "Show me all the available socks in the store."

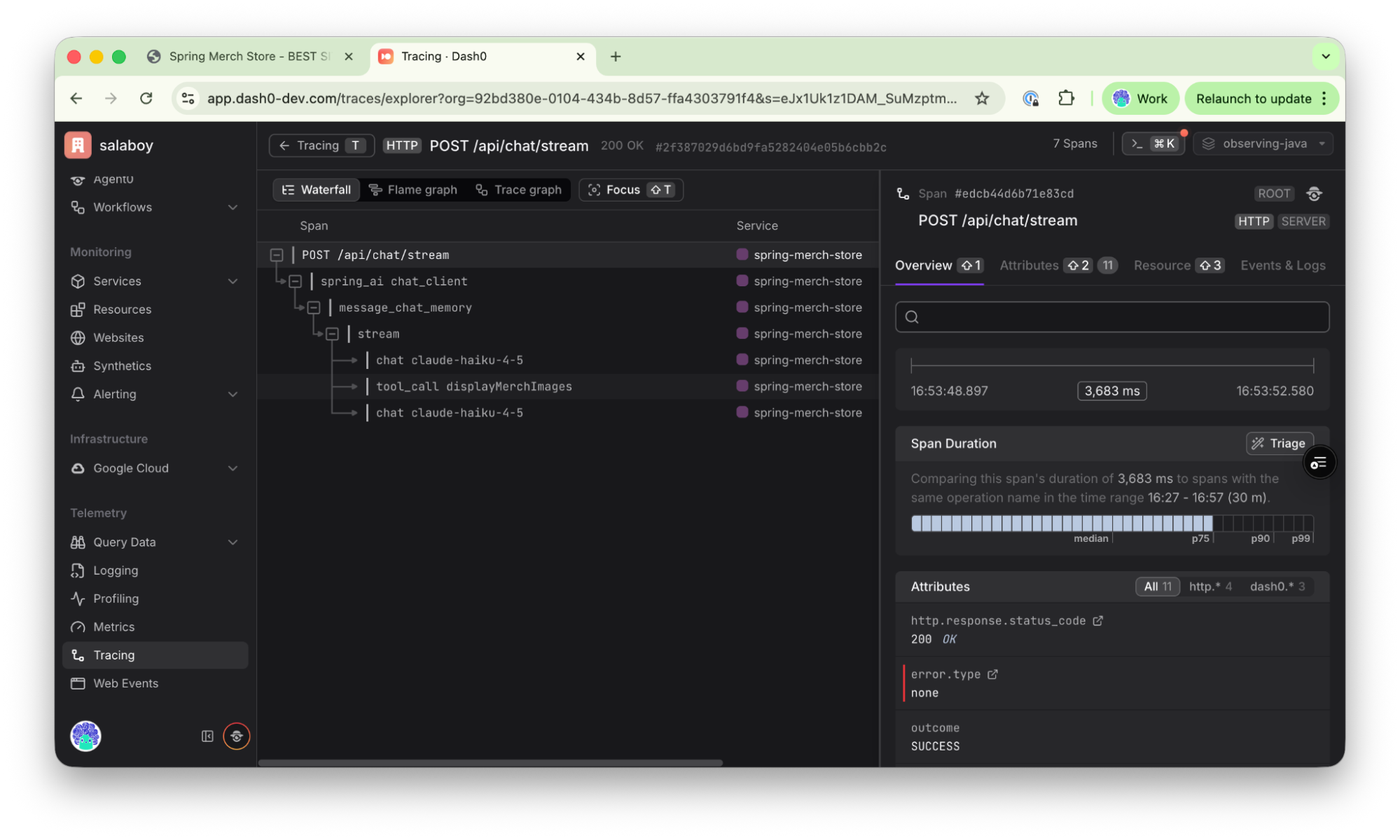

We can see that Spring AI creates a span when the prompt is sent, followed by a message_chat_memoryCopy span, then the chat sent to claude-haiku-4-5Copy (Anthropic LLM). In this case the LLM returns requesting a tool call (displayMerchImagesCopy), the tool is called, and the result is sent back to the LLM which responds "end turn", meaning there are no more actions to take.

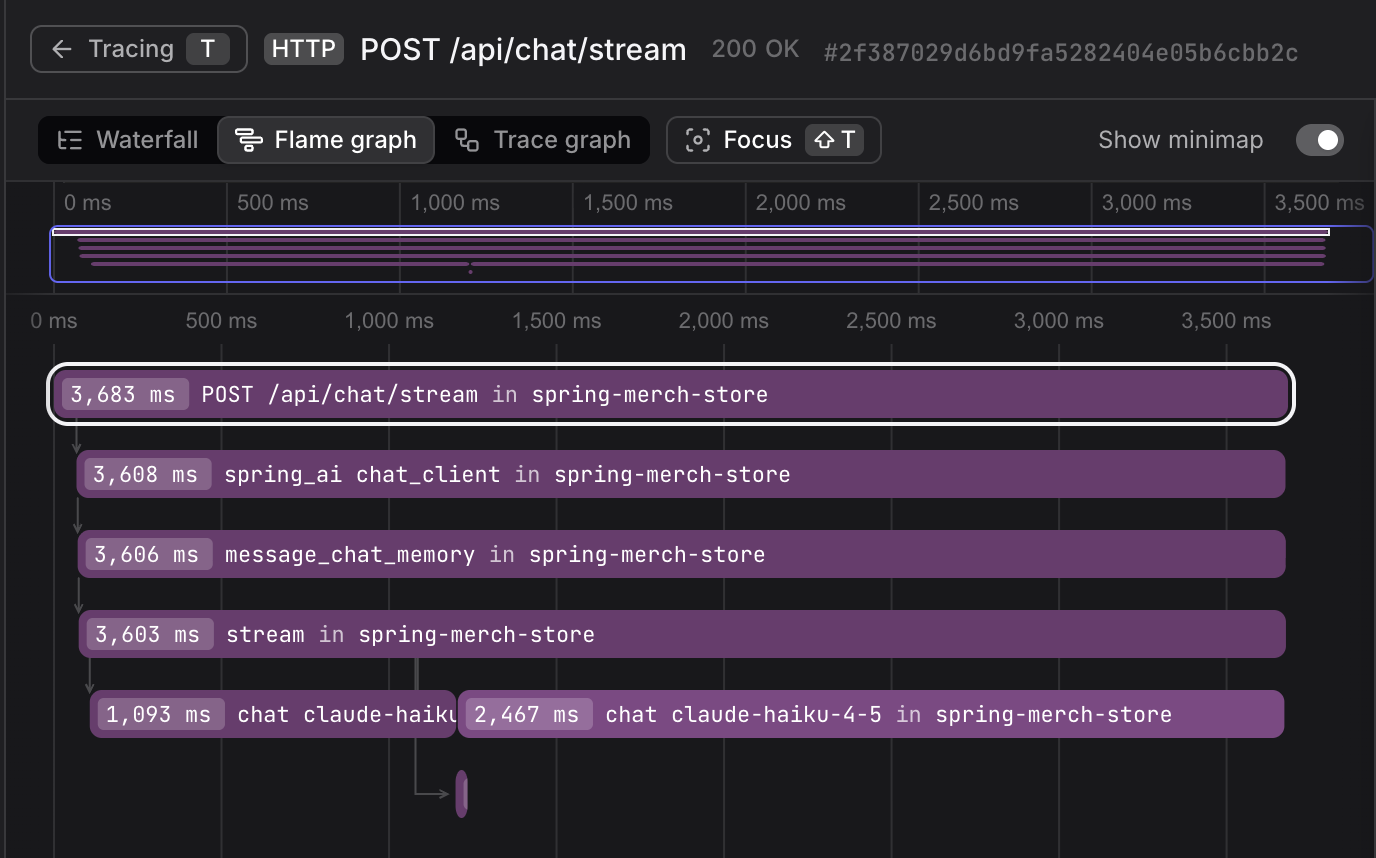

Depending on how complex the prompts are, the flamegraph can give you a sense of how long the model is taking to respond.

For this example, we can see how fast the tool call was compared with the results being streamed by the LLM.

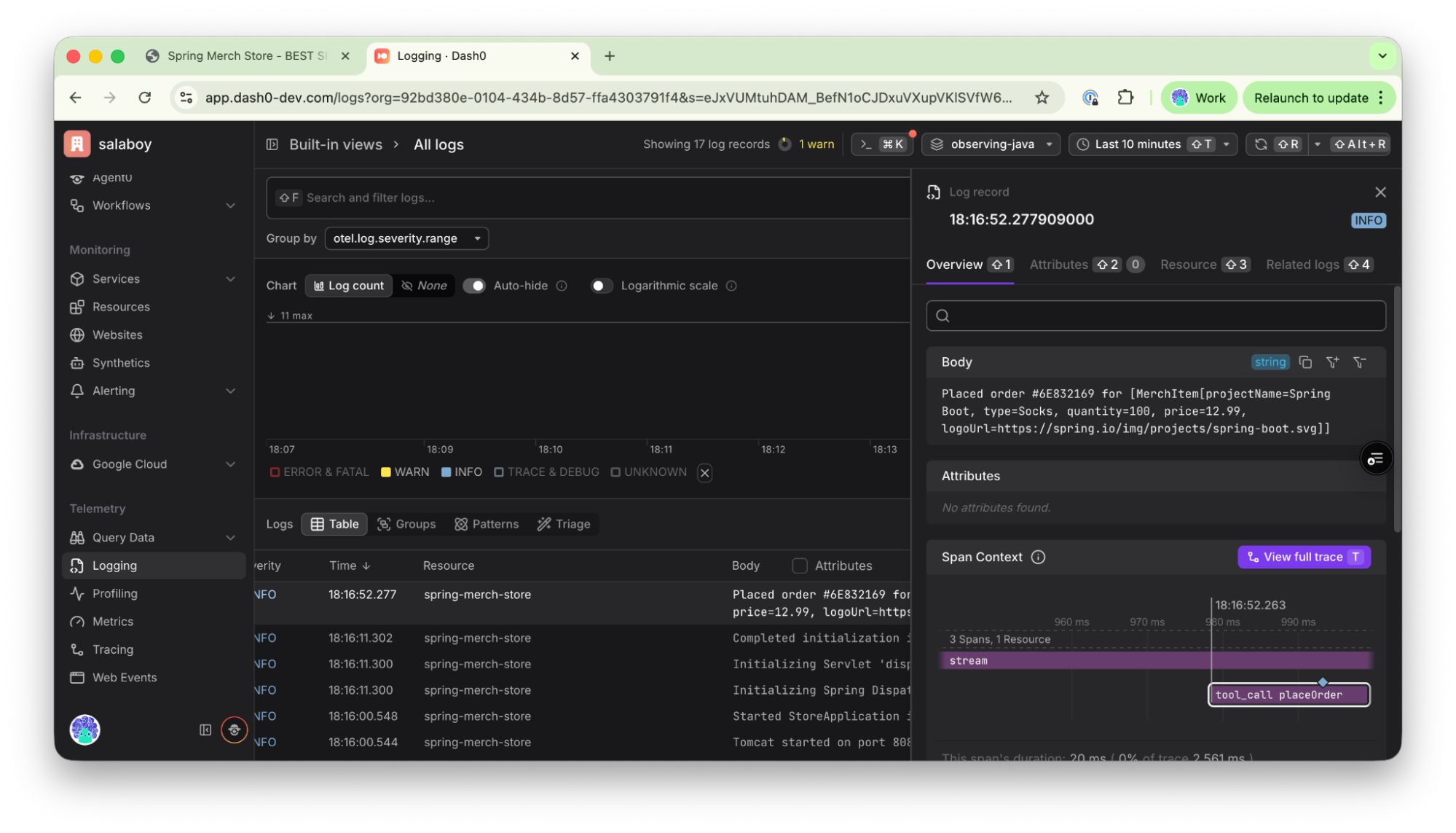

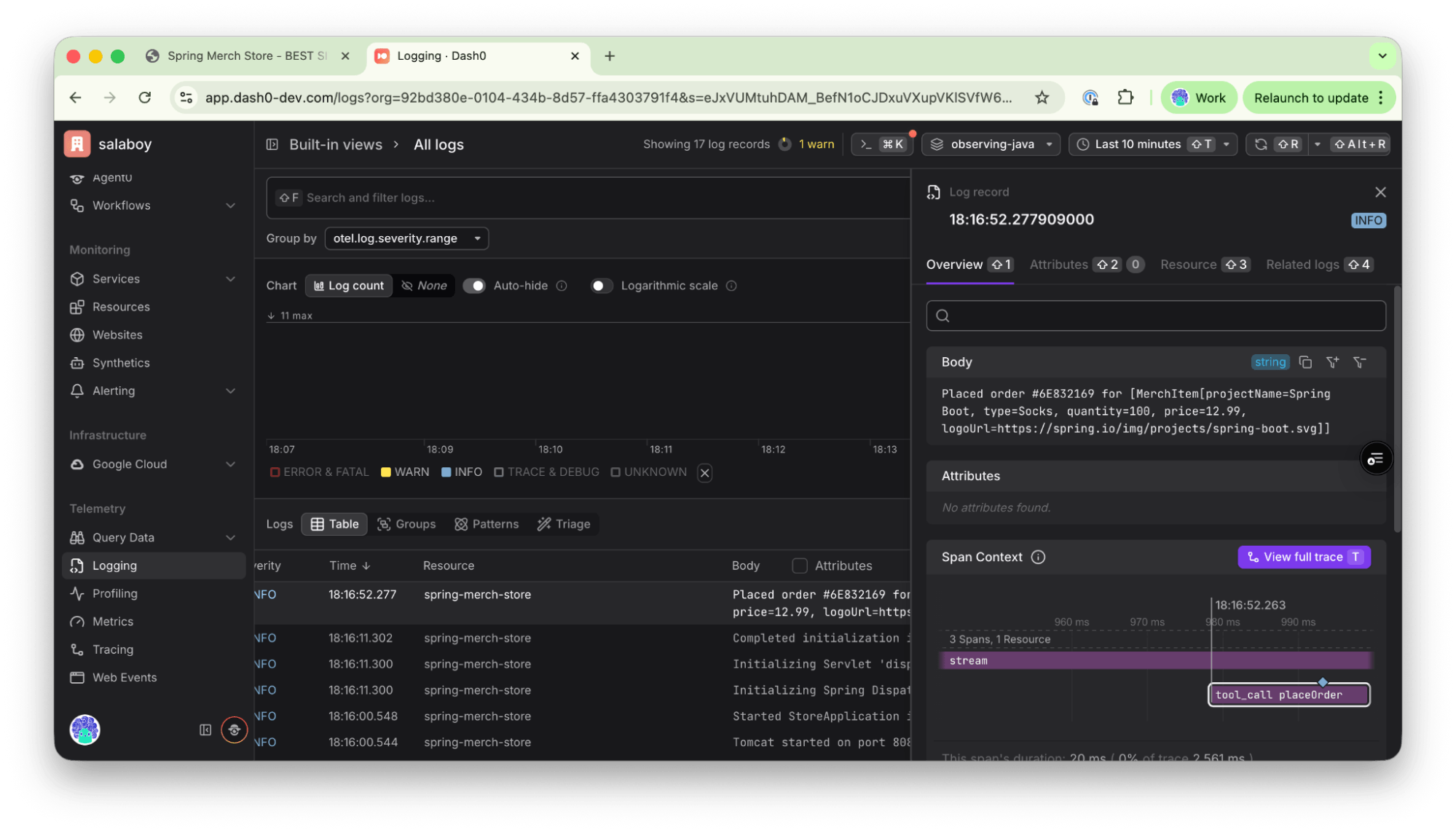

You can also switch to logs to see how the log for the order being placed ("Placed order #6E832169..") correlates to the trace of the placeOrderCopy tool call.

Spring Boot OpenTelemetry defaults

By default spring-boot-starter-opentelemetryCopy provides quite a lot of wiring, but the application adds three custom pieces that are worth understanding and borrowing for your own Spring AI projects. Check the following blog post from Moritz from the Spring team about other recommended configurations to look at when using Spring Boot 4 with OpenTelemetry.

The X-Trace-Id response header

TraceIdFilterCopy (an OncePerRequestFilterCopy) reads the current trace ID from Micrometer's Tracer and injects it as a response header on every request.

The React frontend can surface this to users, so when someone files a support ticket they can paste a trace ID rather than try to describe what happened. That's a direct line from a user complaint to the exact execution trace.

Prompt and completion text in span attributes

Spring AI can log and include data related to prompts, completions, and the content exchanged when interacting with an LLM. Turning the following properties on in application.propertiesCopy gives you a more detailed view of these interactions:

123
spring.ai.chat.observations.log-prompt=true
spring.ai.chat.observations.log-completion=true
spring.ai.tools.observations.include-content=true

Prompt text and LLM responses are not added to traces by default because they can become large and consume a lot of resources. You can extend Spring AI to add more data if needed for debugging.

ChatObservationConventionConfigCopy extends Spring AI's default observation convention and overrides getHighCardinalityKeyValues()Copy to inject gen_ai.prompt Copyand gen_ai.completionCopy as span attributes. By default, Spring AI doesn't include the full message text in spans because it's high-cardinality and can get verbose in long conversations. Enabling it explicitly lets you see exactly what the model was sent and what it replied, which is invaluable when debugging prompt engineering issues.

Reactor context propagation

Streaming responses use Project Reactor's FluxCopy, which means trace context can get lost as execution hops across threads. ContextPropagationConfigurationCopy enables Hooks.enableAutomaticContextPropagation()Copy and registers a ContextPropagatingTaskDecorator Copyto carry span context through async boundaries. Without this, your streaming spans appear disconnected from their parent HTTP span in the trace waterfall. It's a subtle issue that's easy to miss until you see a broken trace hierarchy.

Final thoughts

Spring Boot 4's spring-boot-starter-opentelemetryCopy turns getting all three observability signals wired up into a matter of configuration, not assembly. One starter replaces the multiple dependencies and manual bridging that Spring Boot 3 required. Combined with Spring AI's built-in gen_ai.*Copy semantic conventions, you get visibility into LLM token usage, tool calls, and multi-turn conversations without writing custom instrumentation.

The full source code of the application is at github.com/salaboy/observing-ai. Clone it, run it, and see what your AI application is actually doing. If you have questions or want to share what you built on top of it, find me on X or LinkedIn.
